When specifying a fiber optic network, choosing between UPC (Ultra Physical Contact) and APC (Angled Physical Contact) connectors is more than simply selecting a connector colour. The decision can have a significant impact on signal quality, network reliability and long-term performance.
One of the biggest differences between the two connector types comes down to return loss—the amount of light reflected back towards the transmitter. While both connector types are designed to minimise signal loss, they achieve this in different ways and are suited to different applications.
This article explains return loss in simple terms, explores why reflections matter, and helps you determine when APC connectors are the best choice for your network.
Understanding Return Loss
Whenever light travels through a fiber optic cable, it passes through multiple connection points, including connectors, adapters and splices. At each connection, a tiny portion of the light can reflect back towards the transmitting device instead of continuing down the fiber.
This reflected light is known as back reflection, and return loss is the measurement used to describe how much of that reflected light returns to the source.
A simple way to think about it is this:
Higher return loss = Less reflected light = Better performance
Lower return loss = More reflected light = Greater chance of signal degradation
Return loss is measured in decibels (dB). Because it is expressed as a positive value, a higher number represents better optical performance. Typical values include:
Connector Type
PC
UPC
APC
Typical Return Loss
30-40 dB
50-55 dB
60-70 dB
Although these numbers may seem close, every improvement represents a significant reduction in reflected optical power.
Why Reflections Matter
Modern fiber optic systems rely on clean, uninterrupted light signals. When reflected light travels back towards the transmitter, it can interfere with outgoing signals, creating unwanted optical noise.
Depending on the application, excessive reflections may result in:
Reduced signal quality
Increased bit error rates
Lower system reliability
Reduced transmission distances
Poorer performance in high-speed optical networks
Many enterprise networks can tolerate small amounts of reflected light without noticeable issues. However, in systems using sensitive optical equipment or longer transmission distances, reflections become much more significant.
What is a UPC Connector?

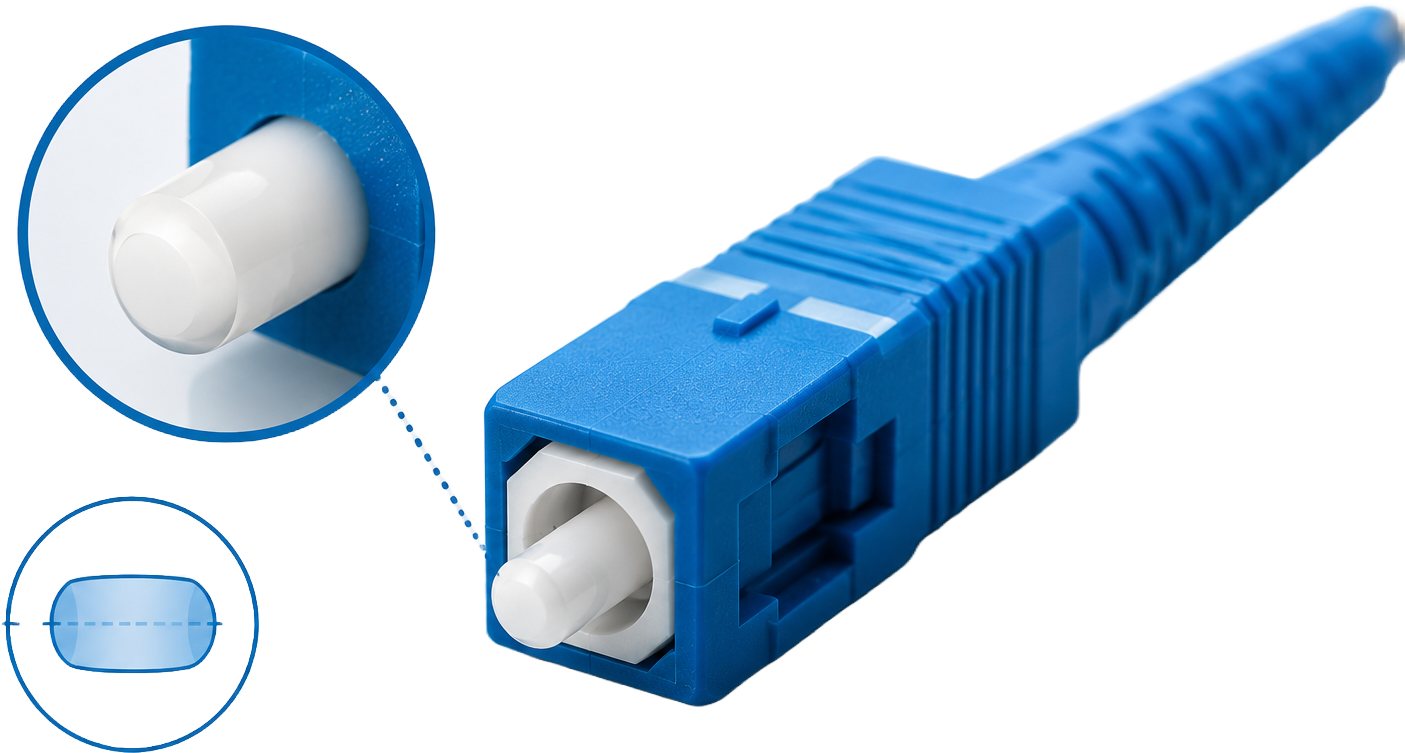

UPC stands for Ultra Physical Contact. A UPC connector uses a precisely polished ferrule with a slightly curved end face that allows two fiber cores to make very close physical contact. This minimises insertion loss while significantly reducing reflections compared with older PC connectors.
UPC connectors are easily recognised by their blue housing. For many indoor installations, UPC connectors provide an excellent balance between performance and cost.
Typical UPC applications include:
Enterprise LANs
Data centres
Campus fiber networks
General telecommunications
Fiber patch panels
Internal building backbone cabling
What Makes APC Different?

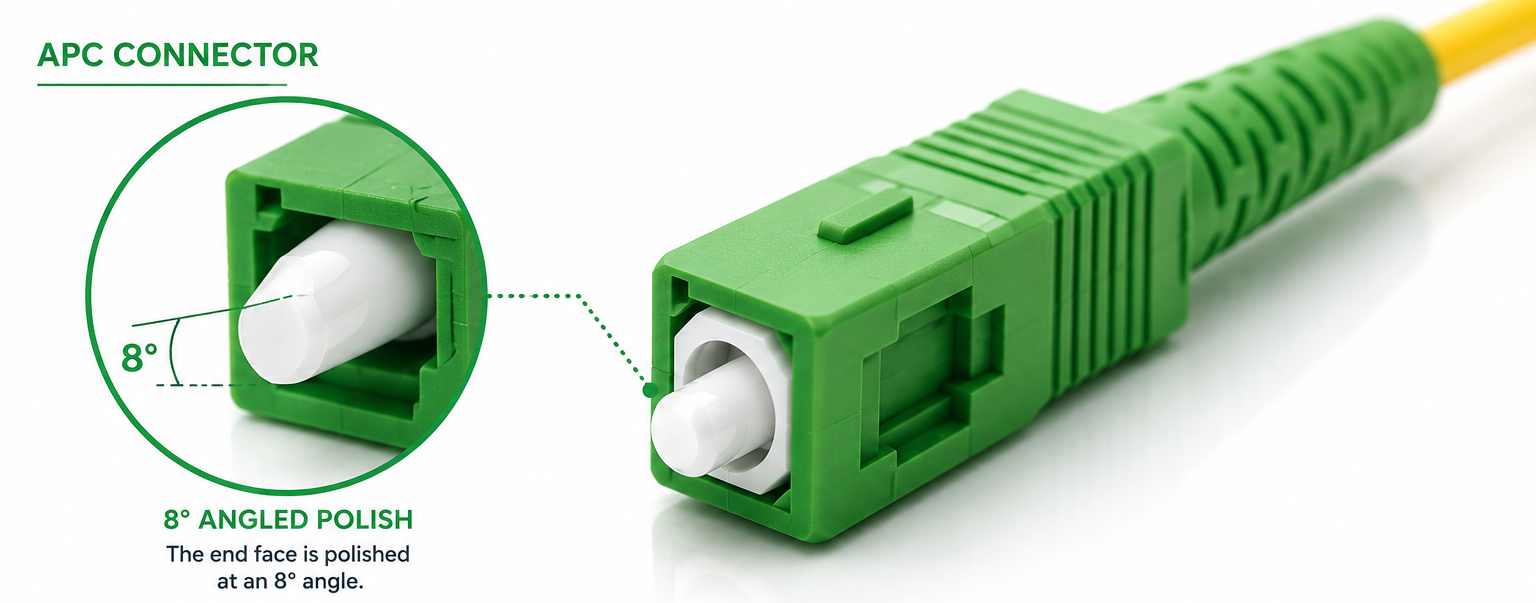

APC stands for Angled Physical Contact. Rather than using a flat polished surface, APC connectors are polished at an 8-degree angle.
Instead of reflecting light directly back towards the transmitter, the angled surface directs reflected light into the fiber cladding, where it dissipates harmlessly.
This simple design change dramatically reduces back reflection and produces much higher return loss values.
APC connectors are typically identified by their green housing.
When Does APC Really Matter?
Not every fiber network requires APC connectors. In many enterprise environments, UPC connectors provide more than enough performance. However, APC connectors become increasingly important wherever reflected light can affect system performance.
Typical APC Applications include:
Fiber to the Home (FTTH)
Passive Optical Networks (PON) depend on extremely clean optical signals over long distances while serving multiple users from a single optical line terminal.
Because reflections can impact overall network performance, APC connectors have become the industry standard for most FTTH deployments.
Internet Service Providers (ISPs)
ISP backbone and access networks often use APC connectors throughout their optical distribution infrastructure to minimise reflections and maximise signal integrity.
CATV and RF over Fiber
Analogue optical transmission is particularly sensitive to reflected light.
Even small reflections can introduce unwanted noise, making APC connectors the preferred option.
Long-Distance Optical Networks
Higher optical power levels and extended transmission distances increase the importance of minimising reflections.
APC connectors help maintain signal quality across longer fiber runs.
Can UPC and APC Connect Together?
This is one of the most common installation mistakes. Although UPC and APC connectors may physically fit together, they should never be mated.
The different end-face geometry prevents proper fibre alignment and can result in:
High insertion loss
Excessive reflections
Permanent damage to the polished end face
Unreliable network performance
As a general rule:
Blue connects to blue (UPC to UPC)
Green connects to green (APC to APC)
ALWAYS VERIFY CONNECTOR TYPE BEFORE INSTALLATION!
Return Loss vs Insertion Loss

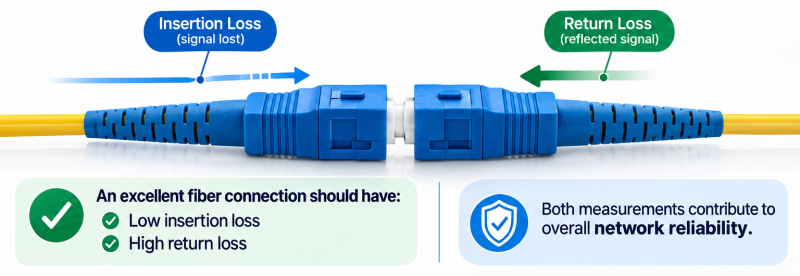

These two terms are often confused, but they measure different aspects of optical performance. Insertion Loss measures how much signal is lost while travelling through the connection. Return Loss measures how much signal is reflected back towards the source.
Choosing the Right Connector
There is no single "best" connector—only the best connector for the application. Selecting the correct connector type during the design stage helps avoid unnecessary troubleshooting, improves network reliability and ensures the best possible optical performance.
Choose UPC when you need:
Enterprise networking
Data centre infrastructure
General fiber patching
Building backbone networks
Standard telecommunications links
Choose APC when you need:
FTTH deployments
GPON, XGS-PON or other passive optical networks
ISP access networks and CATV systems
Long-distance optical links
Applications where reflected light must be minimised
DINTEK Fiber Connectivity Solutions

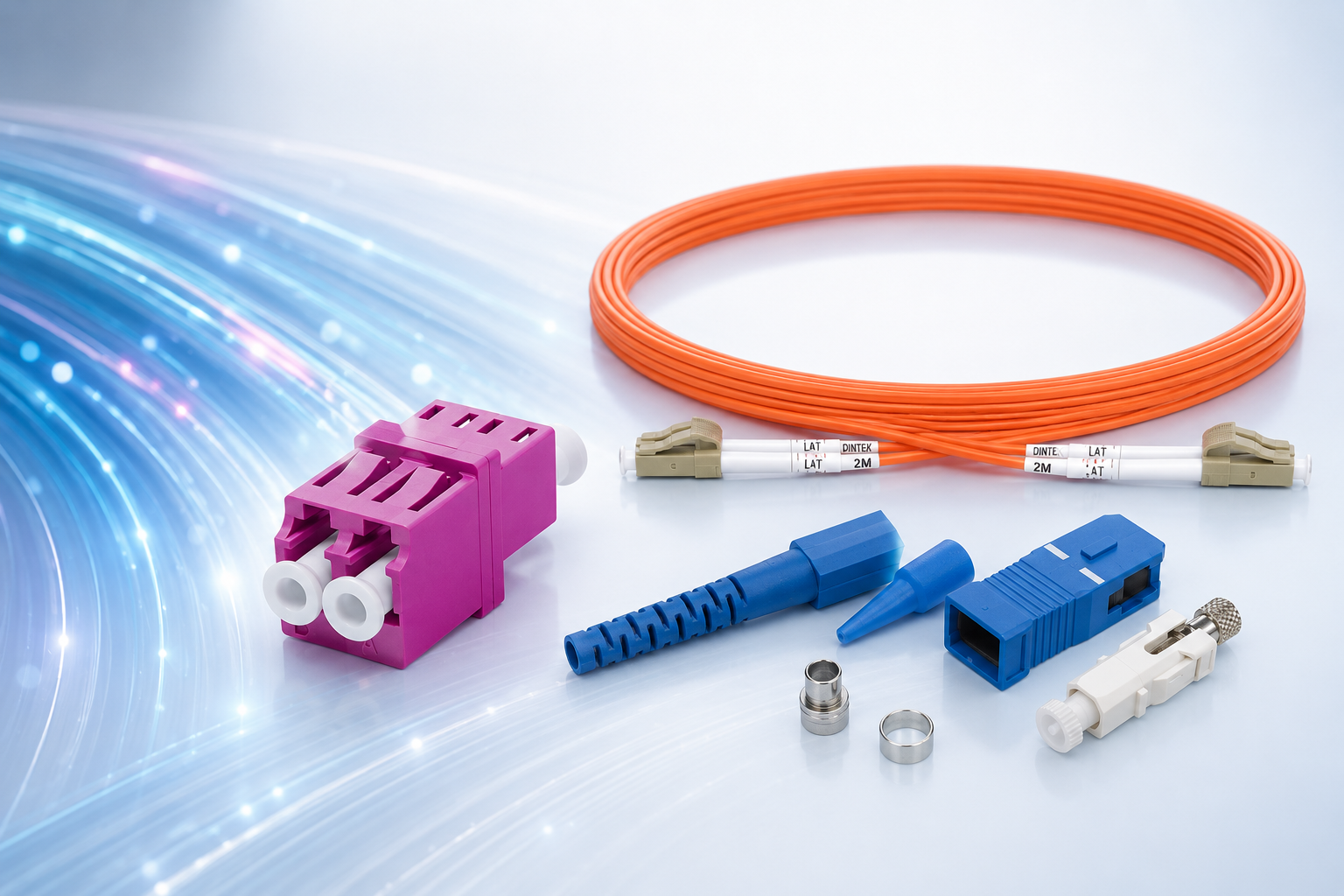

A high-performing fiber network depends on quality components working together. DINTEK offers a comprehensive range of fiber connectivity solutions, including:
