DINTEK's DuraMAX360 RJ45 Field Terminated Plug
As more and more industrial devices and appliances are controlled using a connection to the IT Network, a more noise-tolerant and robust-structured modular plug is required compared to a common office LAN application plug. The plugs and cables must have a strong shielded structure to handle electrical noise and they must also be designed to work in harsh environments such as extreme temperatures, humidity, or vibration.

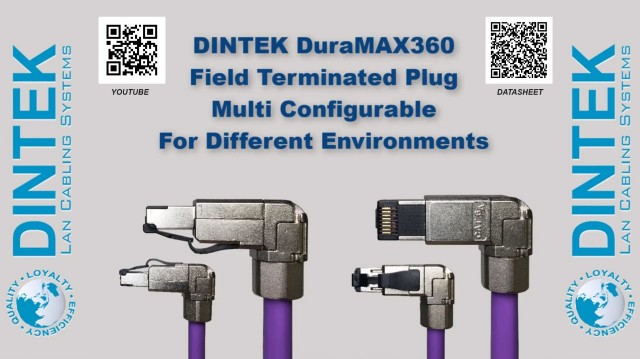

The DINTEK DuraMAX360TM Industrial Grade 4 Way Cat.6A RJ45 Field Plug has been designed for easy installation and field termination while being contained in a rugged package. The plug features a fully shielded die-cast housing and is a highly durable Cat.6A compliant component. Effortless termination has been achieved using the ezi-CONNECTTM Toolless IDC system, which allows a reliable and easy termination process without the need to strip the wires. The multi-configurable plug offers a 90° termination position with final position options of top, bottom, or side entry, and the easy-to-use color-coded conductor pre-load wire manager provides an efficient termination without the need for tools.
The DINTEK DuraMAX360TM Industrial Grade 4 Way Field Terminated Plug comes in a Category 6 and Category 6A version and is suitable for up 10G Base-T networks. The 4 Way Field Terminated Plug can be used for solid or stranded 22-26 AWG cable with a diameter over the conductor insulation up to 1.6mm (0.63in) and accepts an overall cable OD of 6mm (0.236in) to 8mm (0.315in).
Full Metal Housing RJ45
Field terminable plug for Cat.6A cable assemblies, wireless access points, cameras and switch/server connections. A robust die-cast housing provides superior shielding and mitigates alien crosstalk.
500Mhz Performance
For a 10GBASE-T channel compliant network to support 10 Gb Ethernet; Fully backwards compatible with Cat.5e or Cat.6; Cat.6A shielded connector supports 22 to 26 AWG solid or stranded shielded wire with an outside diameter between 6mm & 8mm.
Tool Free RJ45 Termination
With an open hinged design simplifying placement and termination of bulky shielded cable compared to a cramped modular plug; IDC modules can be wired for T568A or T568B wiring.
Superior Construction
RJ45 connectors enables excellent suppression of EMI, NEXT, and AXT electromagnetic noise and crosstalk; A screw-on metal strain relief boot protects the cable integrity and increases the shielding performance.
4PPoE Plus Compatible
With compliant Cat6A shielded Ethernet cable for IEEE 802.3bt Power over Ethernet (PoE+ or 4PPoE) applications.
