Endings That
Matter
How Ethernet Termination
defines network quality
Modern networks depend on reliable cable runs — but how you put those cables together makes all the difference. Whether wiring a smart home, equipping a business, or expanding a commercial network, how and where you terminate your Ethernet cables directly affects performance, flexibility, and long-term reliability.
Why
TERMINATION CHOICES MATTER
Terminating a network cable isn’t just “plug and go.” The connector and method used determine not only maximum speed and compatibility, but also ease of maintenance and future scalability.
You may have seen various connector types — some snap and click, others punch down, and newer ones combine both. Getting this choice right helps your network maintain its designed bandwidth and prevents frustrating slowdowns, noise interference, or intermittent failures later.
Signal integrity relies on precise wire placement and proper strain relief. Poor terminations can introduce crosstalk, attenuation, or reflection, leading to lost packets and poor PoE delivery.
In other words: your termination is where a fast network can either thrive or fail.
Unpacking the Three Main Termination Styles
Keystone Jacks
Modular jacks mounted in faceplates, patch panels, or surface outlets. They use IDC (punchdown) contacts or toolless IDC mechanisms to terminate the four twisted pairs.
Why it matters: Keystones provide mechanical protection and (when properly installed) excellent pair geometry control. Good keystone terminations preserve twist, minimise untwist length, and reduce NEXT/PSNEXT and return-loss issues.
DINTEK products:
PowerPRO Cat.5e, PowerMAX Cat.6 and PowerMAX+ Cat.6A E-Type (Horizontal), F-Type (Vertical) and Toolless versions available.
DINTEK's Cat.6 Unshielded Toolless Jack

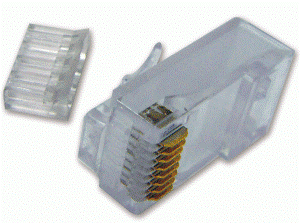

DINTEK's PowerMAX Cat.6 UTP Solid RJ45 Plug - 2 Piece
Standard RJ45 Plugs
The common modular plug crimped onto the end of a cable to produce a fixed patch/pigtail. Choose the plug type to suit stranded vs solid conductor cable.
Why it matters: Correct plug selection and a quality crimp ensure reliable contact pressure and correct conductor alignment. Bad crimps or wrong plug type increase insertion loss and can cause intermittent faults — effects become more pronounced as category (frequency) increases.
DINTEK products:
PowerPRO Cat.5e, PowerMAX Cat.6 & PowerMAX+ Cat.6A Plugs & Boots available.
Field Terminated Plugs
Field-terminable plugs that use IDC/clamshell mechanisms or toolless designs — they don’t require crimp tools and are often used for Modular Plug Terminated Links (MPTL) and on-site patching.
Why it matters: When well designed, they reduce installer error and fitment sensitivity compared with standard crimp plugs and are ideal for short device drops (IoT, APs, PoE devices).
DINTEK products:
DuraMAX360 4 Way Cat.6A Plug and STP Plug.
DINTEK's DuraMAX360 - 4 Way Industrial Cat.6A RJ45 Plug
Matching Method to Mission: Best Practices
- Wall-drop / structured outlet → Keystone jack (PowerMAX E/F type). Use keystones for permanence, easy port re-assignment, and clean faceplate installation.
- Short device drops / MPTL → Field termination plug (toolless plugs). Faster, less tool-dependent and space-efficient for APs, cameras, sensors. Verify plug meets the required category.
- Custom length patch leads → Factory patch-cords (preferred) or quality crimped RJ45s. Where you need many custom lengths on site, use high quality plugs and an experienced crimper — otherwise order pre-terminated patch cords to reduce site risk.
- High EMI areas → Shielded keystone or shielded toolless keystone. Ensure continuity/bonding and that the panel/faceplate provides a grounded path.
Performance Considerations
AND TEST RESULTS
When you test after termination, use a good cable certifier and record results. Key measurements and pass/fail considerations:
- Wiremap — confirms correct pair order, shorts, split pairs.
- Length and propagation delay — check against link design expectations.
- Insertion loss (attenuation) — increases with poor contacts or long link; critical for higher frequencies.
- NEXT / PSNEXT — near-end crosstalk; untwisting and poor pair alignment raise NEXT.
- Return loss / RL — sensitive to impedance discontinuities at termination (bad crimps, mismatched plugs).
- ACR-F / ACR-N (Attenuation to Crosstalk Ratio) — combined metric that indicates usable margin for data rate.
- Alien crosstalk (ANEXT / AACRF) — for high density and high speed (Cat6A / Cat8) installations, test where needed.
- PoE checks — for PoE deployments, verify contact reliability and heating issues on high power PDs.
Notes about expected differences by termination style:
- Well-executed keystone + factory patch cable often gives the most predictable, repeatable results.
- High quality field-termination plugs can meet category specs when used as intended — but choose proven designs and test every link.
- Standard crimp plugs are more fitment sensitive; achieving guaranteed Cat.6A/10G performance with on-site crimping is harder than with pre-terminated assemblies or certified keystone terminations.
Choosing Based on Use Case (Quick Decision Guide)
- Office desk / building structured cabling: Keystone jacks (PowerMAX E/F).
- Wireless APs / cameras / sensors where no outlet box present: Field termination plug / MPTL toolless option.
- Data centre patch panels / high-density panels: Keystones with vertical/horizontal orientation selected for cable routing and density (consider F-type vertical for some panel designs).
- High-speed/futureproofing (25/40GBase-T): Use shielded, higher category keystones and consider DINTEK XLR-8 Cat.8 family where the spec requires it. Always test to the target standard.
Good Practice Tips for Installation
- Keep untwist minimal — aim to keep pair untwist ≤ 10–13 mm (≈0.4–0.5 in) whenever possible at termination.
- Maintain pair order and colour coding (T568A or T568B) — pick one standard and keep it consistent across the building.
- Use the right tool for the job — punchdown tool for IDC keystones (unless toolless), correct crimper for 8P8C plugs, and a quality cable certifier for final test records.
- Dress cables before termination — remove the jacket only to the length required, straighten conductors but don’t over-untwist. Use a keystone working base or similar tool to hold conductors in place for more consistent terminations.
Shielding continuity — for shielded cable/jack combos, ensure the shield makes low-resistance contact with the connector and is properly grounded.
Label and document — record port IDs, test results and cable IDs immediately. Keep a digital record (CSV/PDF) of certifier outputs for warranty and troubleshooting.
Test every link — especially when using field-termination plugs or on-site crimped plug ends. Certify to the category required (Cat.6, Cat6.A, Cat.8 as appropriate).
- Consider environment & mating cycles — if a port will be re-mated often, choose robust keystones and patched cords rated for many cycles.
Summary
Termination choice is not just about convenience — it is a technical decision that directly affects network performance, reliability and testability.
For structured outlets and guaranteed, repeatable performance, keystone jacks (DINTEK PowerMAX E-type/F-type and toolless PowerMAX options) are the standard.
For device drops and fast field installs, high-quality field termination plugs and toolless solutions are strong options if each link is tested to the required category.
For mission-critical or high-speed links (10G and above), prefer shielded, higher-category components (such as DINTEK’s XLR-8 family for Cat.8 applications) and insist on certifier-grade test results.
