DINTEK’s next-generation toolless jacks have landed—and they’re here to make your installs cleaner, quicker, and future-ready. Whether you need shielded or unshielded, shuttered or unshuttered, this unified new design delivers a level of consistency, performance, and reliability that installers can feel the moment they pick one up.

The refreshed PowerMAX™ Cat.6 range goes beyond Class E channel requirements with a rock-solid build and fine-tuned internal layout for maximum performance. Meanwhile, the PowerMAX+™ Cat.6A jacks take things further, offering 10GbE-ready speed, robust shielding options, and high-density formats to meet the demands of today’s networks — and tomorrow’s.

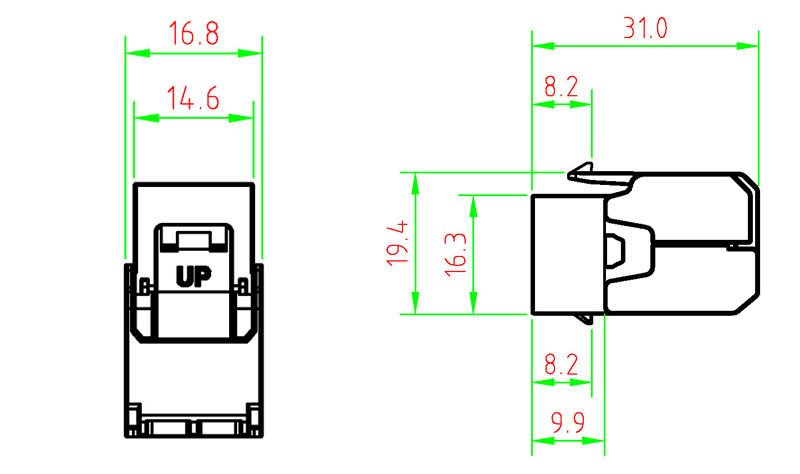

PowerMAX™ Cat.6 Unshielded Toolless Jacks

Shuttered | Unshuttered

These new connectors show off the next evolution in PowerMAX™ design: clean lines, consistent construction across the entire range, and performance that goes well beyond the basics.

Both models are built to exceed ANSI/TIA-568-2.D Cat.6 hardware transmission performance, giving installers confidence that every termination is delivering true high-speed capability.

They’re engineered for flexibility too — accepting 22–26AWG stranded or solid wire with universal T568A/B wiring. And with the crisp, snap-close toolless mechanism, terminations are fast, tidy, and repeatable.

Choose the standard unshielded jack for everyday installations, or the shuttered version when dust protection or a cleaner look is needed. Either way, you’re getting part of DINTEK’s newest, most streamlined generation of connectivity hardware.

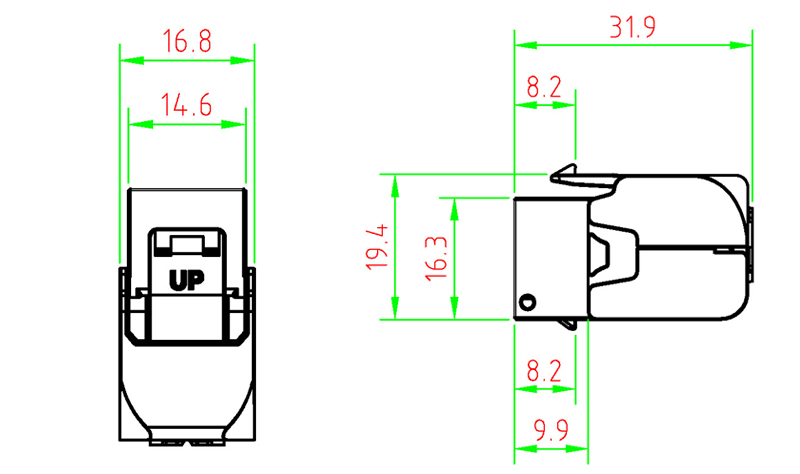

PowerMAX™ and PowerMAX+ Shielded Toolless Jacks

Cat.6 | Cat.6A

These vertical models take everything new in the PowerMAX™ design platform and re-engineer it for tight-space installations.

With a compact, top-entry form factor, these shielded jacks are made for shallow back boxes, high-density wall plates, and anywhere horizontal clearance is limited. The full metal shielding ensures stable Cat.6 performance in noise-heavy environments, while the toolless snap-close mechanism keeps terminations fast and repeatable. Choose the standard vertical jack for everyday structured cabling, or the shuttered version when dust protection or cleaner aesthetics are essential.

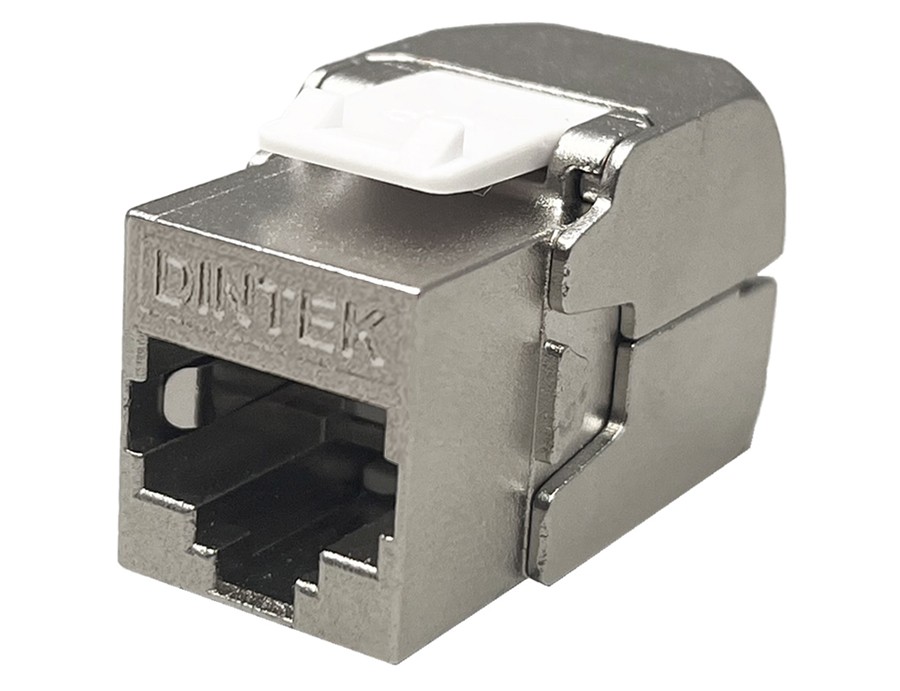

PowerMAX+™ Shielded & Unshielded Toolless Jacks

Shielded | Unshielded

The PowerMAX+™ Cat.6A toolless jacks take DINTEK’s high-speed platform into 10GbE territory, delivering excellent insertion loss and strong alien crosstalk suppression in a compact, 90° high-density design.

Installers can choose the fully shielded version — with its die-cast zinc alloy housing and metalised cap for maximum EMI protection — or the unshielded UTP model for everyday enterprise environments where high performance is required without the added shielding.

Both support 22–24AWG solid or stranded wire, offer dual T568A/B wiring, and provide fast, tool-free terminations that ensure clean, consistent results across any Cat.6A installation.

Whatever your network needs, DINTEK’s PowerMAX™ and PowerMAX+™ toolless jacks deliver speed, reliability, and flexibility in one clean package. From standard Cat.6 workhorses to high-performance Cat.6A shielded solutions, there’s a jack for every installation — all designed to make terminations fast, consistent, and worry-free.
