Where your network cables are concerned, you can't truly get connected without RJ45 plugs. The RJ45 plug (Registered Jack-45 to be precise..) is the little connector at the end of the cable that connects to your TV, computer, router, etc. Their actual name is "8P8C" (8 position, 8 contact), referring to the 8 positions that each plug consists of, each spaced approximately 1mm apart. Individual wires are then inserted into these positions. There are a variety of 8P8C connectors available, with the modern RJ45 Ethernet connector being the most prevalent. DINTEK offers a range of RJ45 plugs suitable for use with Cat.5e, Cat.6, and Cat.6A cable, including the Pass-Through Plug and Industrial-Grade Field Plug suitable for use in harsher environments.

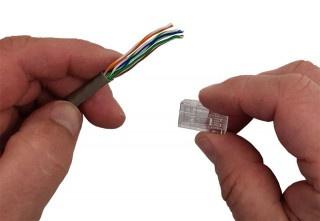

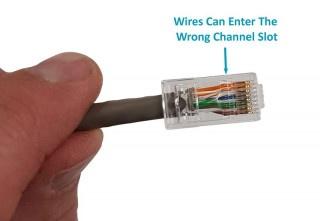

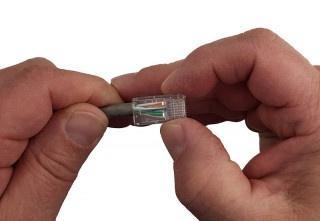

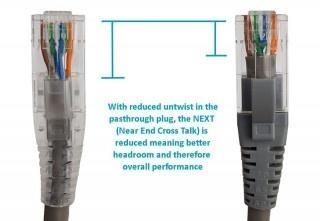

For use with both solid and stranded core cables, the DINTEK Pass-Through ezi-PLUG allows the wire to be passed through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs. By maintaining the twists as close to the point of termination as possible, it significantly decreases crosstalk and markedly increases performance. This in turn improves the overall headroom capability of the link, providing the end-user with the best possible bandwidth.

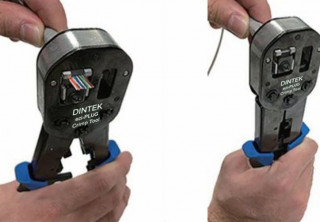

Using DINTEK's Pass-Through ezi-PLUG Crimp Tool you can quickly crimp and cut the wires of the Pass-Through ezi-PLUG RJ45 connector, in one simple move! Manufactured from high-strength steel, it includes a convenient wire cutter in the handle.

DINTEK'S Industrial-Grade RJ45 Field Plug has been designed for easy installation and field termination while being contained in a rugged package - ideal for harsher environments.The plug can be configured in 4 different right angle positions, depending on the application environment and the directional requirement for the cable to exit away from the plug. Termination has been achieved using the ezi-CONNECTTM IDC system, which allows a reliable and easy termination process without the need to strip the wires.

For more details on DINTEK's full range of RJ45 plugs, please contact This email address is being protected from spambots. You need JavaScript enabled to view it.
