PowerPRO Cat.5e F-Type Vertical ezi-JACK - Shuttered
| PowerPRO Cat.5e F-Type Vertical ezi-JACK - Shuttered |
English |
If it's terminating speed that you’re after, then look no further than the DINTEK PowerPROTM ezi-JACK. These jacks provide performance that exceeds Cat.5e connecting hardware performance specifications.
The DINTEK ezi-TOOLTM system is an all-in-one punch down and wire trim process, designed to ensure consistent connections, better performance and faster fit off times.
The PowerPROTM 180 degree shuttered ezi-JACK works with either the ezi-TOOLTM or a standard 110 style DINTEK punch down tool.
Features
- Meets all Cat.5e channel performance requirements specified in ANSI/TIA-568-2.D
- 110 type IDC termination
- Accepts 22~26AWG, stranded or solid wire
- Modular jack meets FCC part 68
- Wiring: T568A/B
Standards Conformance
- UL, ETL verified
- ANSI/TIA-568-C.2
- ISO/IEC 11801
- EN 50173
Applications
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
Ordering Information |
|||||
|---|---|---|---|---|---|
Product Number |
Product Name |
Orientation |
Color |
Qty / Box |
Qty / CTN |
1305-03048 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

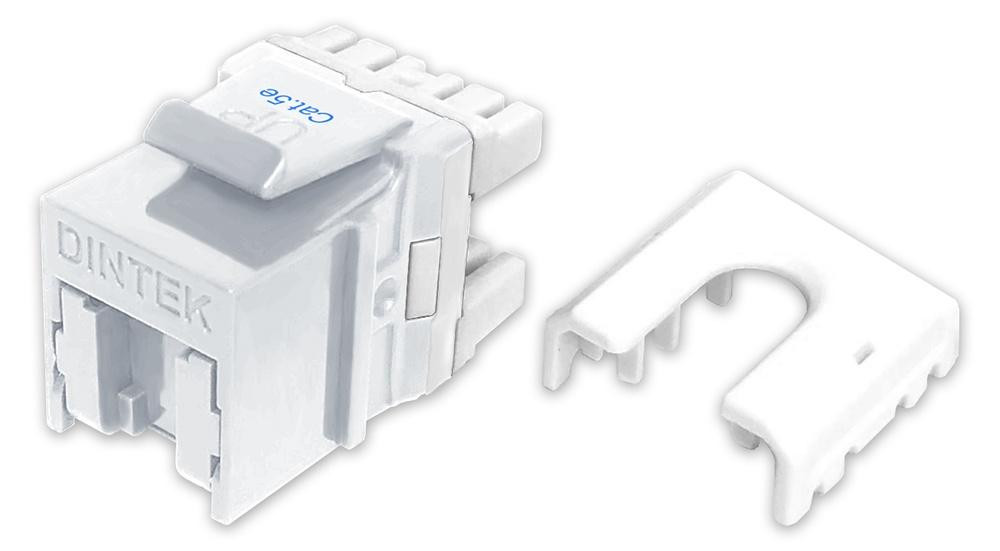

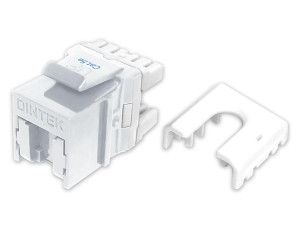

White |
100 |
600 |
1305-03060 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

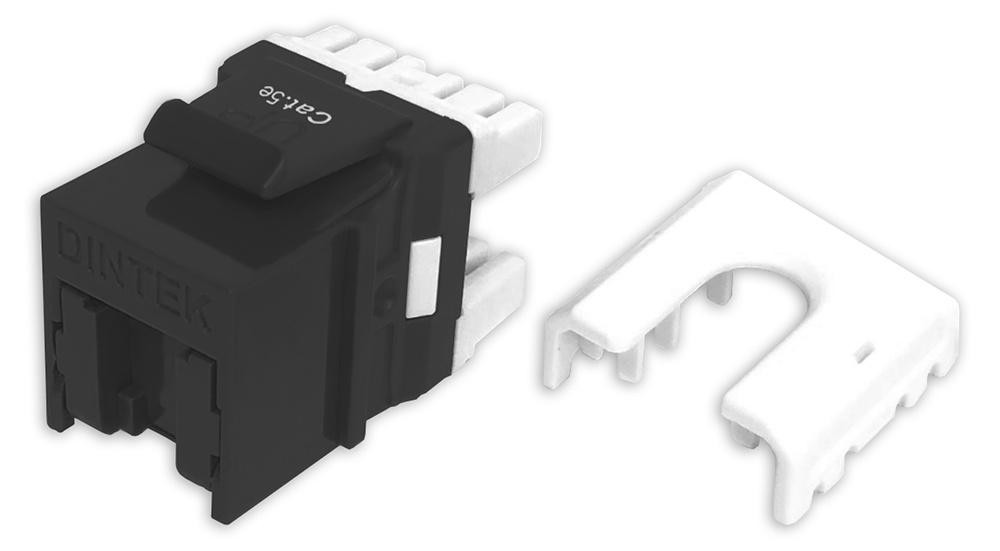

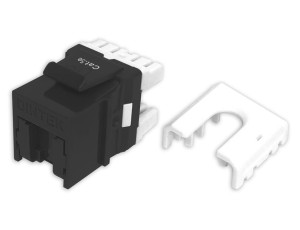

Black |
100 |
600 |
1305-03052 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

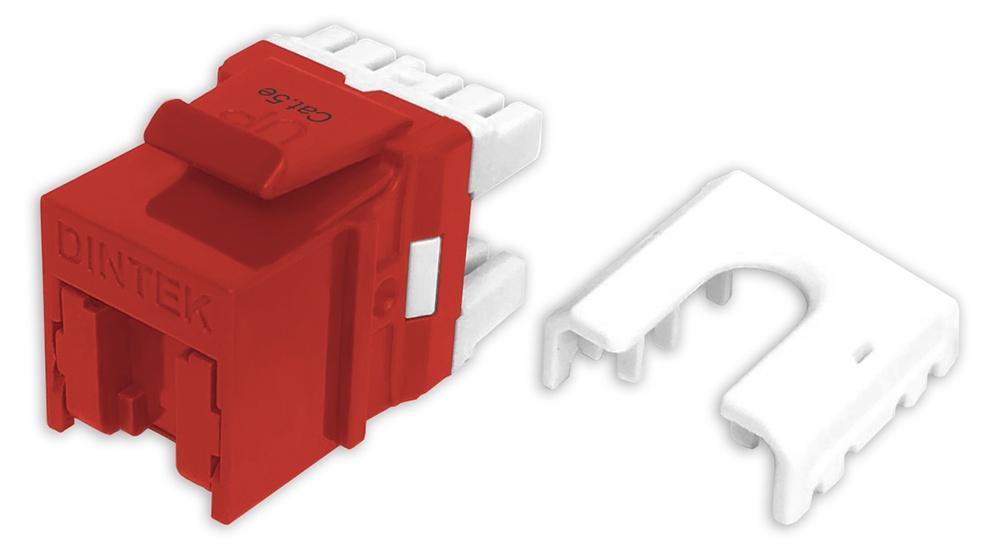

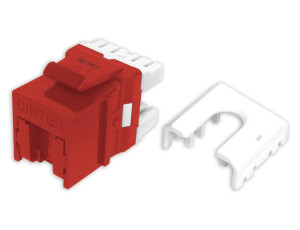

Red |
100 |
600 |
1305-03051 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

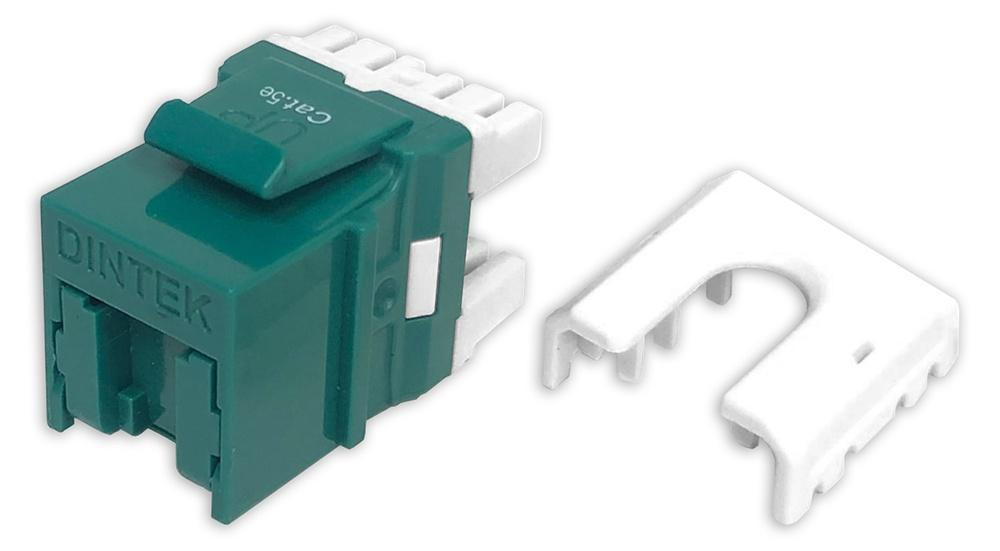

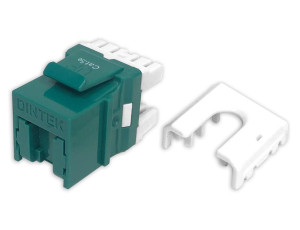

Green |
100 |
600 |
1305-03050 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

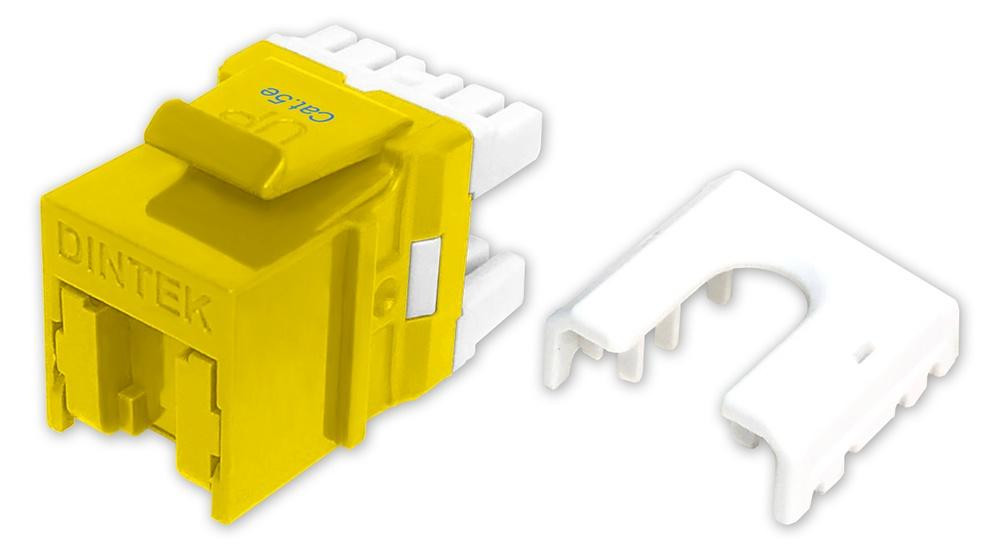

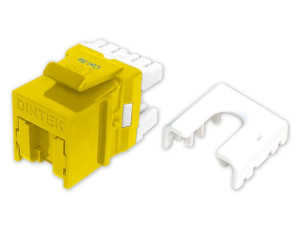

Yellow |
100 |
600 |
1305-03049 |
Cat.5e 180 Degree Unshielded Shuttered F-Jack, T568A/B - Shuttered |
Vertical/180° |

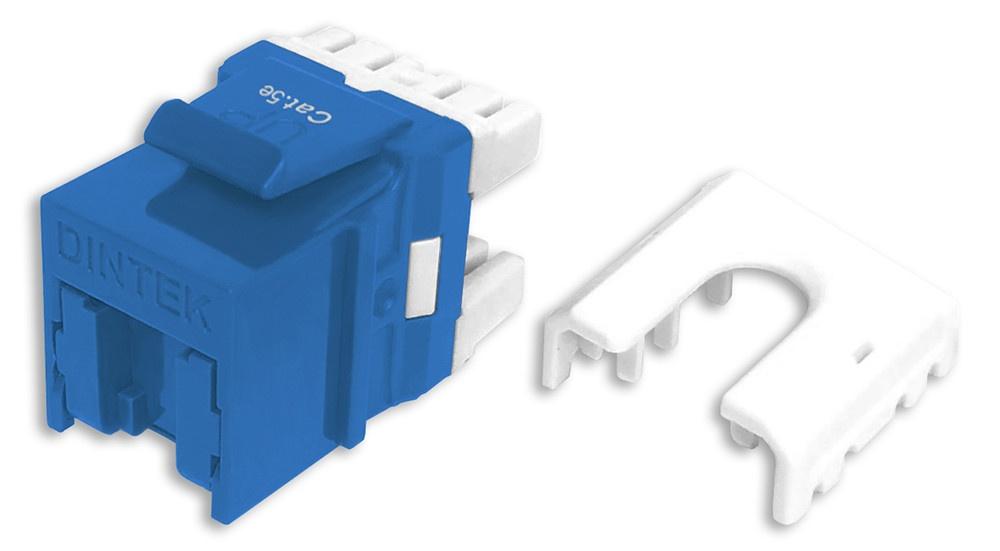

Blue |
100 |
600 |
Technical Specifications |
|
|---|---|
| Construction | |
| Body | |
| Connector Housing |
High Impact Flame-Retardant Plastic |
| Standard |
UL94v-0 rated |
| Front Connection | |
| Contact Type |
Spring Wire |
| Material |
Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel |
| Contact Plating |
Oro duro de 24 quilates (espesor del recubrimiento de 50 micropulgadas) sobre níquel de 100 micropulgadas |
| Rear Terminals | |
| Terminal Type |
IDC |
| Material |
Phosphor bronze alloy with 100 micro-inch 100% Sn alloy |
| Physical Ranges | |
| Temperature Range |
Storage : -40 to +70℃ | Operational : -10 to +60℃ |
| Relative Humidity |
Operational : Max. non-condensing 93% |
| Retention |
50N (11 Ibf) for 60s ± 5s |
| Insertion/Extraction life |
750 cycles minimum |
| Number of IDC terminations |
200 minimum |
| Total mating force |
800 grams for a 8 wire leads minimum |
| Electrical | |
| Insulation Resistance |
500 MΩ min.@ 100V d.c |
| Dielectric Withstanding Voltage |
1000 V d.c. or a.c. Peak Contact to Contact @ 60 Hz for 1 MIN. |
| Spring Wire Contact Resistance |
20 mΩ Max. |
| Voltage/Current Rating |
150VAC/1.5A |
| IDC Contact Resistance |
2.5 mΩ Max. |
Terminal Demonstration |
|---|
| Vertical ezi-JACK |
 |
 |
 |
Strip 40mm of sheath from cable using stripper |
Using working base, place wires as per color spec |
Make sure that twists are right up to termination points |
 |
 |
 |
Insert jack into ezi-TOOL with yellow cutting blade |
Squeeze handles together to terminate and trim wires |
Check terminations, then place dust cap onto jack |
